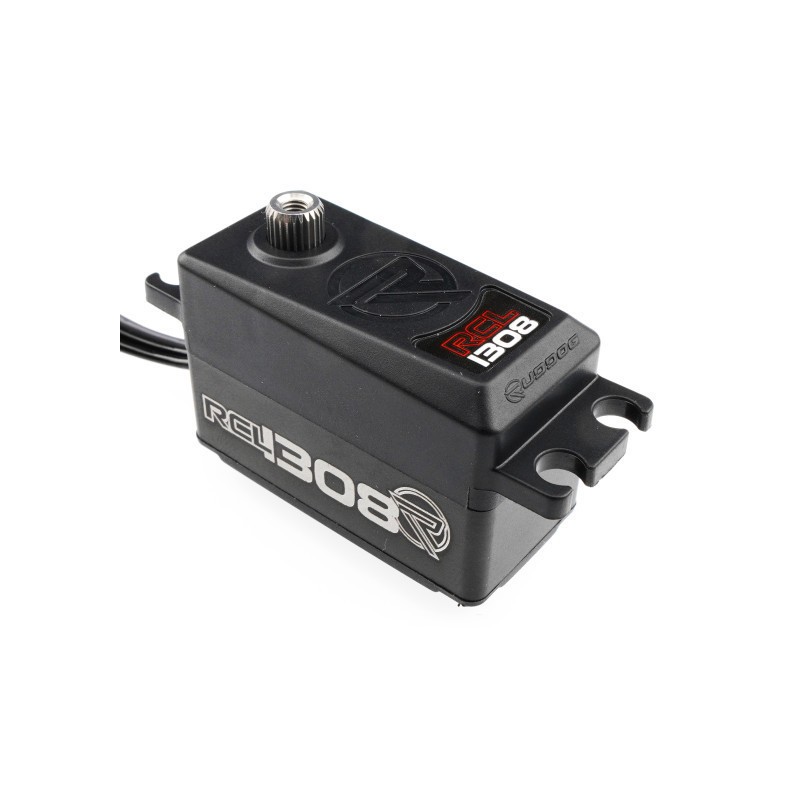

RCL1308 HV Low-Profile Coreless Servo (0.08s|13.2k

RCL1308 HV Low-Profile Coreless Servo (0.08s|13.2k

Hybrid housing design: plastic with central aluminum section

Spline: 25T

Dimensions: 40.8x20.3x26.9mm

Weight: 43.0g

Operating speeds: 0.101s @6.0V, 0.088s @7.4V, 0.081s @8.4V

Operating torque: 11.7kg @6.0V, 13.2kg @7.4V, 14.1kg @8.4V

Voltage range: 4.8 - 8.4V

Motor type: Coreless

Gear type: Metal

Cable length: 100mm

Package includes: Servo, 4 mounting screws, 100mm cable Extension.
