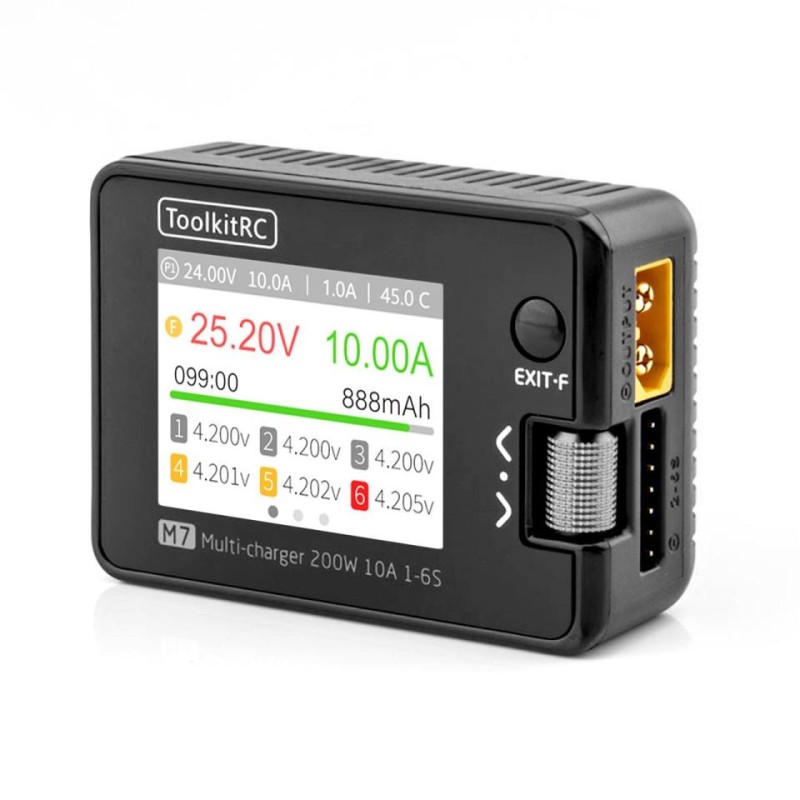

CARGADOR DC M7 LiPo 1-6S 10A 7-28V ToolKit

Technical Specifications:

Input Voltage:AC 100-240V, max. 100W

DC 7-35V, max. 20A

Charge Power:0.1-15A, 300W

Discharge Power:0.1-15A, 300W (Rec/Ext. Mode)

0.1-3A, 15W (Intern. Mode)

Charging Accuracy:<0.005V

USB A:5.0V@10W (or Upgrade)

Balance Current:800mA, 4.2V

Cells LiPo/LiFe/LiIon/LiHV1-6S

Cells: NiMH1-16S

Pb Battery Voltage:1-10S

Voltage:1.0V-5.0V, 1-6S

Display:IPS 2.4'' 320x240px LCD

TF Card:Supports 128MB to 16GB

Dimensions:112x73x38mm

Weight:245g

Measurement & Output:

MeasurementPWM880us-2200us, 20-400hz

PPM880us-2200us x8 CH, 20-50hz

SBUS880us-2200us x16 CH, 20-100hz

OutputPWM500us-2500us, 20-1000hz

PPM880us-2200us x8 CH, 50hz

SBUS880us-2200us x16 CH, 74hz

Power0.5-15A, 1-28V, Modus: CC+CV

Delivery:

1x M7AC-Charger

1x USB cable

1x Manual
